Creating the schematic



Goal:

Ground node

Click to open full screen

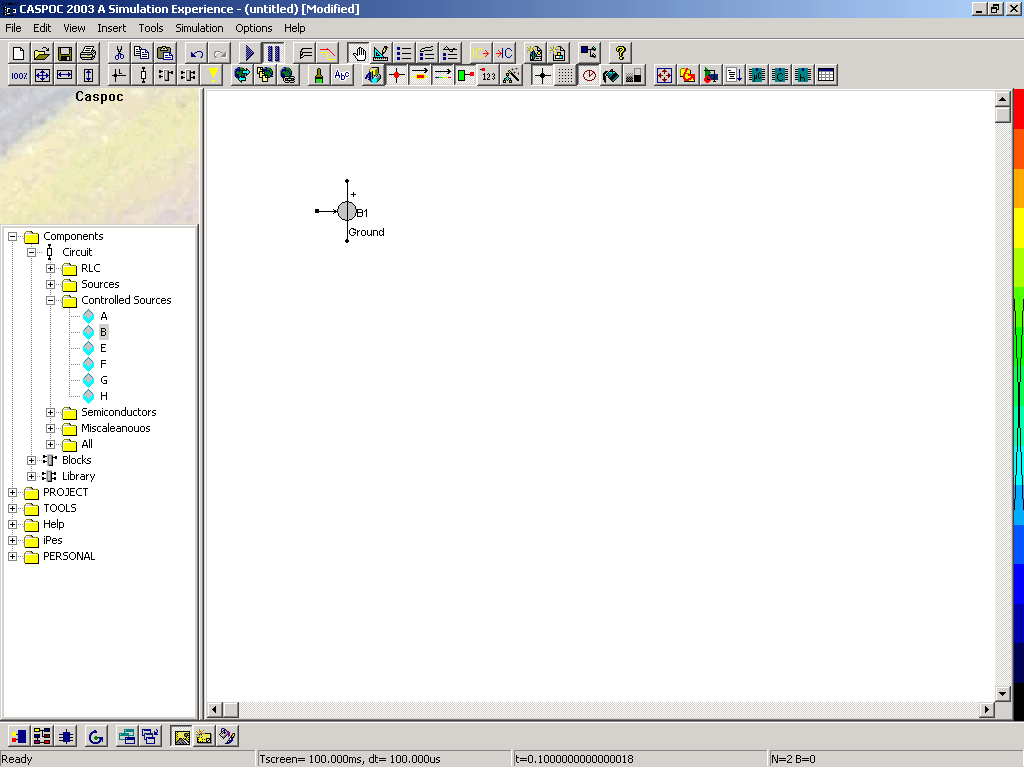

What to do: The component B is placed on the schematic and now its properties can be defined.
Move the mouse cursor over the component and click the right mouse button, which brings up the component properties dialog box.
