Controlling a Mosfet in a buck converter.

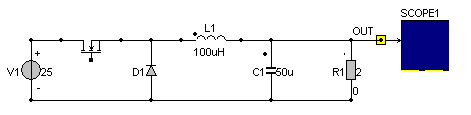

In this tutorial we will create a model where the mosfet is controlled from the block diagram. Select the Mosfet and Diode from Components/Circuit/Semiconductors Create a circuit as shown below:

Click to open full screen

The gate of the Mosfet is a block diagram node. This is indicated by the square node. We will control the gate of the Mosfet by using a SIGNAL block. The block SIGNAL is used to create wave forms like square waves, sinusoidal and triangular waveforms. Select the block TIME and SIGNAL from Components/Blocks/Source

Click to open full screen
The block SIGNAL is used for creating the square wave form for controlling the gate. Open the block SIGNAL by clicking it with the right mouse button. The third parameter indicates the type of the signal. There are various wave forms possible such as sinusoidal, square wave, triangular, etc. Default the third parameter is set to 0 to select a square wave form.

Please note that in most cases the first input has to be connected to the block Time. The DC value of the source is set to 0 and the AC value is set to 1. The frequency of the square wave form is set to 200kHz with a phase-shift of 0 rad. The duty cycle is the last parameter of the block SIGNAL and is set to 0.5.

The gate of the Mosfet is connected to the output of the block SIGNAL. The simulation is shown below.

Click to open full screen
