Simulation Research provides tools and services for the Power Electronics and Electrical Drives designer.

Integrated simulation approach.

Modern design of a power electronics system is nowadays more and more verified by simulation. The circuit simulation itself is not satisfactory any more without proper system analysis and design.

Understanding the strength of different CAD tools and integrating them in the design process allows investigating more design aspects then only circuit simulation.

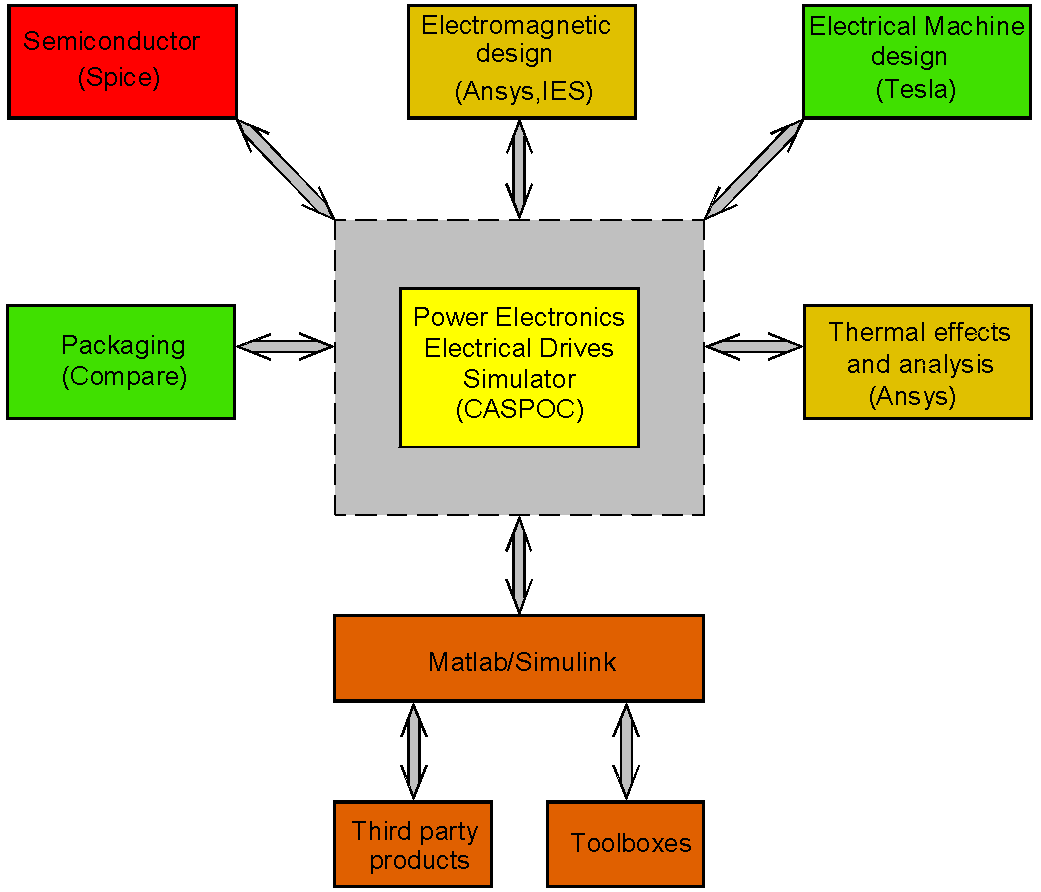

Typical power electronics system analyses consist of many aspects. These are, for example, parameters of magnetic actuators, parameters and precise models of semiconductor switches, electrical machine parameters, thermal effects, different control issues, packaging and parasitic effects as a result of different layout, to name a few. Designers are usually concentrating on one or more aspects, but the trend is clearly towards an integrated approach as shown above. A power electronics simulator is central in this case. The interaction and data exchange with different analysis and design tools is hereby necessary.
